XL-5530L-LW300-S-R AUDIO PIEZO INDICATOR 6-16V CHAS - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

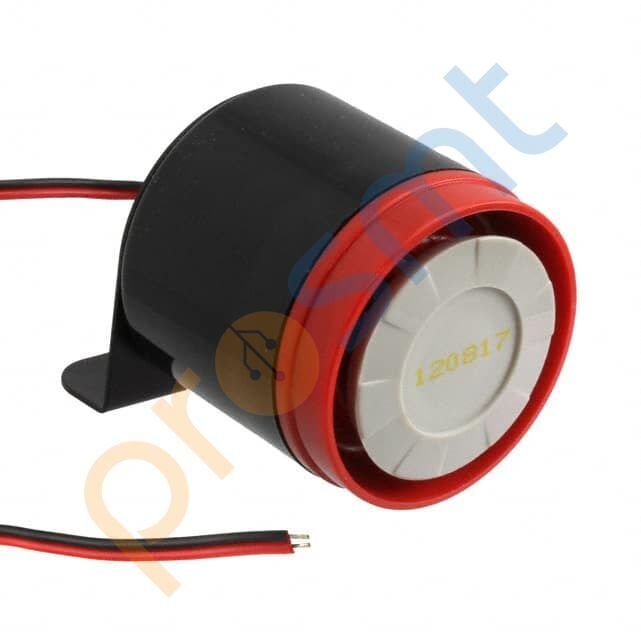

XL-5530L-LW300-S-R AUDIO PIEZO INDICATOR 6-16V CHAS
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | XL-5530L-LW300-S-R |
| Mfr | PUI Audio, Inc. |
| Description | AUDIO PIEZO INDICATOR 6-16V CHAS |
| Series | XL |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 6 ~ 16V |
| Frequency | 3kHz |
| Technology | Piezo |
| Operating Mode | Siren |
| Duration | 3 PPS |
| Sound Pressure Level (SPL) | 123dB @ 12V, 10cm |
| Current - Supply | 260mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Bracket Mount |
| Termination | Wire Leads |
| Size / Dimension | 2.146" Dia (54.50mm) |
| Height - Seated (Max) | 2.224" (56.50mm) |
