WST-1212S AUDIO MAGNETIC XDCR 8-16V TH - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

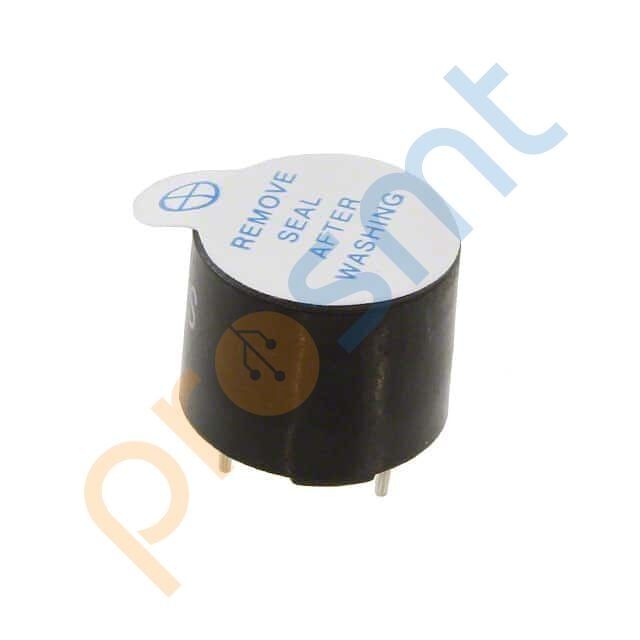

WST-1212S AUDIO MAGNETIC XDCR 8-16V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | WST-1212S |
| Mfr | Soberton Inc. |
| Description | AUDIO MAGNETIC XDCR 8-16V TH |
| Series | WST |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 10 ~ 14V |
| Frequency | 2.3kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 12V, 10cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.386" (9.80mm) |
Bu ürüne ilk yorumu siz yapın!
