WP-23502-000 MICROPHONE COND ANALOG OMNI - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

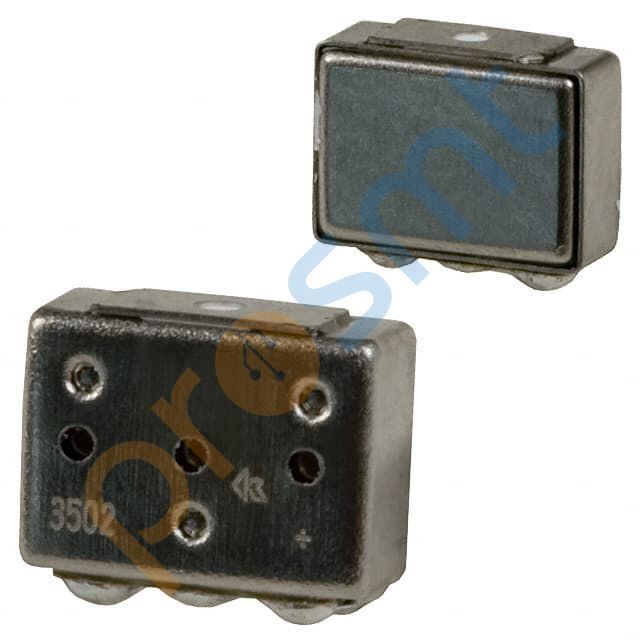

WP-23502-000 MICROPHONE COND ANALOG OMNI
Knowles mikrofon FG-23329-P07. 100 Hz ~ 10.0 kHz, Circular, Electret Condenser, -53dB ±3dB @ 74dB SPL, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | WP-23502-000 |
| Mfr | Knowles |
| Description | MICROPHONE COND ANALOG OMNI |
| Series | WP |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 4.0 kHz |
| Sensitivity | -52dB ±3dB @ 74dB SPL |
| S/N Ratio | - |
| Impedance | 4.4 kOhms |
| Voltage - Rated | 1.3 V |
| Voltage Range | 1.3 V ~ 10.0 V |
| Current - Supply | 50 µA |
| Port Location | Top |
| Ratings | Waterproof |
| Termination | Solder Pads |
| Size / Dimension | 0.219" L x 0.157" W (5.56mm x 3.99mm) |
| Height (Max) | 0.089" (2.26mm) |
| Shape | Rectangular |
