TP293409-1 PIEZO TRANSDUCER - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

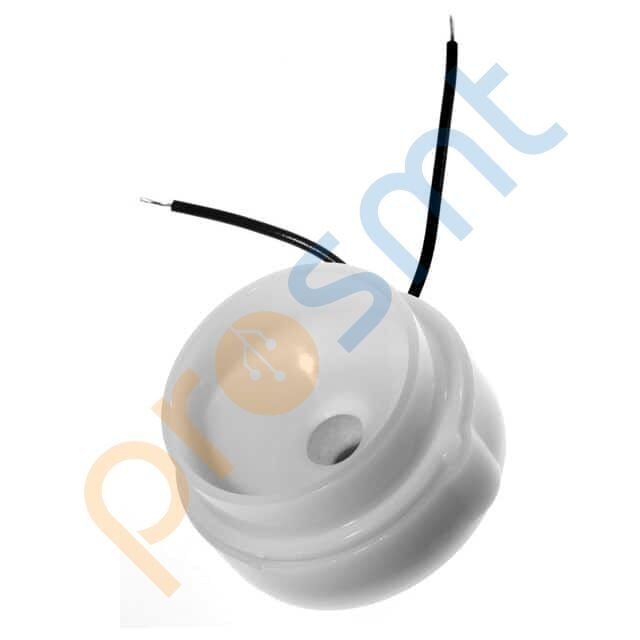

TP293409-1 PIEZO TRANSDUCER
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | TP293409-1 |
| Mfr | DB Unlimited |
| Description | PIEZO TRANSDUCER |
| Series | - |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 9 V |
| Voltage Range | 9 ~ 28V |
| Frequency | 3.4kHz |
| Technology | Piezo |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | - |
| Current - Supply | 180mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Custom |
| Termination | Wire Leads |
| Size / Dimension | 1.169" Dia (29.70mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
