TOM-1545L-LW100-R MIC COND ANALOG OMNI -45DB 4MM D - MIKROFON | MIC
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

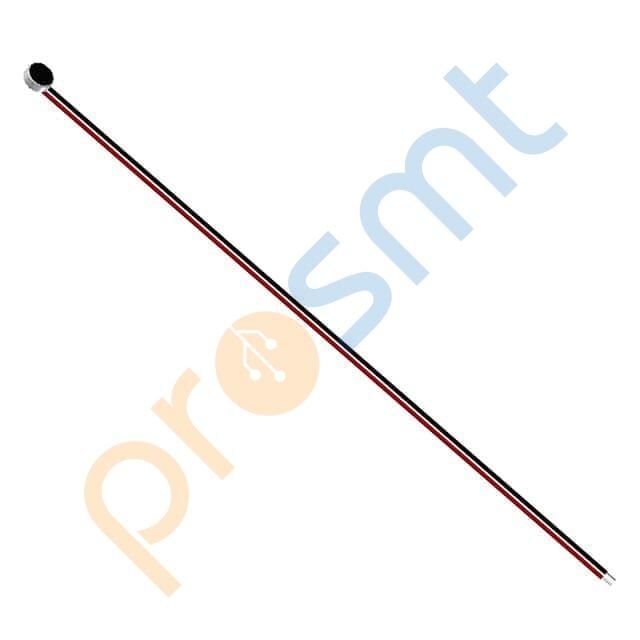

TOM-1545L-LW100-R MIC COND ANALOG OMNI -45DB 4MM D
Knowles mikrofon NR-23160-000. 100 Hz ~ 4.0 kHz, Rectangular, Electret Condenser, -52dB ±3dB @ 74dB SPL, Noise Cancelling, Analog çıkışlı.
ÖzellikDeğer| Datasheet | PDF Datasheet indir |
| Mfr Part # | TOM-1545L-LW100-R |
| Mfr | PUI Audio, Inc. |
| Description | MIC COND ANALOG OMNI -45DB 4MM D |
| Series | TOM |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 10.0 kHz |
| Sensitivity | -45dB ±3dB |
| S/N Ratio | 60dB |
| Impedance | 2.2 kOhms |
| Voltage - Rated | 2 V |
| Voltage Range | 2 V ~ 10.0 V |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height (Max) | 0.067" (1.70mm) |
| Shape | Circular |
