TC-32348-000 MICROPHONE ANALOG -40DB - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

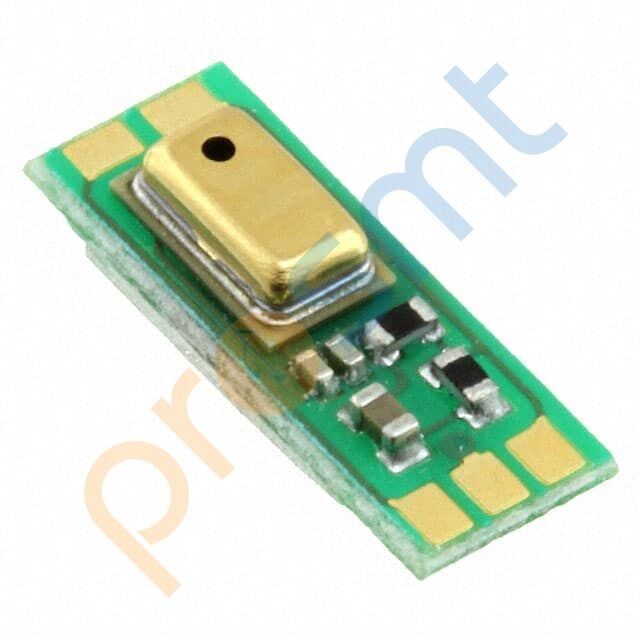

TC-32348-000 MICROPHONE ANALOG -40DB
Knowles mikrofon WP-23502-P16. 100 Hz ~ 4.0 kHz, Rectangular, Electret Condenser, -52dB ±3dB @ 74dB SPL, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | TC-32348-000 |
| Mfr | Knowles |
| Description | MICROPHONE ANALOG -40DB |
| Series | TC |
| Type | - |
| Output Type | Analog |
| Direction | - |
| Frequency Range | 100 Hz ~ 6.0 kHz |
| Sensitivity | -40dB ±3dB @ 94dB SPL |
| S/N Ratio | - |
| Impedance | 2.2 kOhms |
| Voltage - Rated | 2 V |
| Voltage Range | - |
| Current - Supply | 500 µA |
| Port Location | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.368" L x 0.138" W (9.35mm x 3.50mm) |
| Height (Max) | 0.098" (2.50mm) |
| Shape | Rectangular |
Bu ürüne ilk yorumu siz yapın!
