ST-0503-3 AUDIO MAGNETIC XDCR 2-4V SMD - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

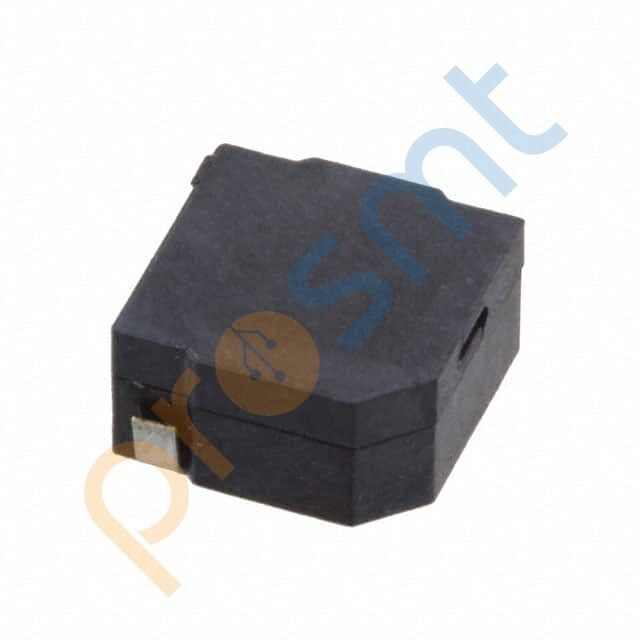

ST-0503-3 AUDIO MAGNETIC XDCR 2-4V SMD
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | ST-0503-3 |
| Mfr | Soberton Inc. |
| Description | AUDIO MAGNETIC XDCR 2-4V SMD |
| Series | ST |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 2 ~ 4V |
| Frequency | 4kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 75dB @ 3V, 10cm |
| Current - Supply | 110mA |
| Port Location | Side |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.114" (2.90mm) |
