SPW0690LM4H-1 CAMERON MIC DIGITAL BOTTOM PORT - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

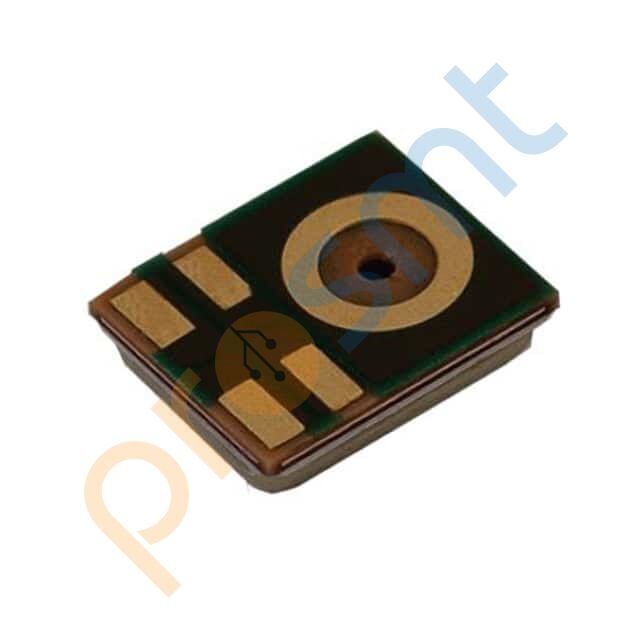

SPW0690LM4H-1 CAMERON MIC DIGITAL BOTTOM PORT
PUI Audio, Inc. mikrofon DMM-4026-B-R. 20 Hz ~ 18.0 kHz, Rectangular, MEMS (Silicon), -26dB ±1dB, Omnidirectional, Digital, PDM çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | SPW0690LM4H-1 |
| Mfr | Knowles |
| Description | CAMERON MIC DIGITAL BOTTOM PORT |
| Series | SiSonic™ SPW |
| Type | MEMS (Silicon) |
| Output Type | Digital, PDM |
| Direction | Omnidirectional |
| Frequency Range | 20 Hz ~ 10.0 kHz |
| Sensitivity | -41dB ±1dB @ 94dB SPL |
| S/N Ratio | 66.5dB |
| Impedance | - |
| Voltage - Rated | - |
| Voltage Range | 1.65 V ~ 3.6 V |
| Current - Supply | 2 mA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.122" L x 0.098" W (3.10mm x 2.50mm) |
| Height (Max) | 0.037" (0.95mm) |
| Shape | Rectangular |
