SPU0410HR5H-PB MICROPHONE MEMS ANLG OMNI IOT - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

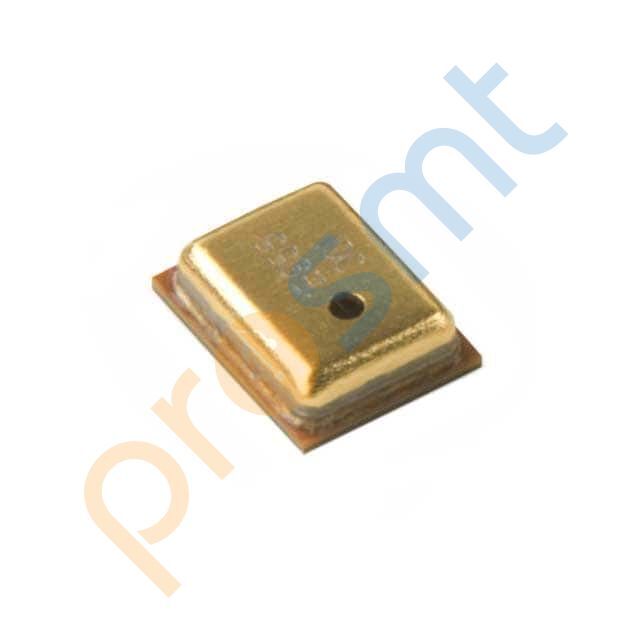

SPU0410HR5H-PB MICROPHONE MEMS ANLG OMNI IOT
PUI Audio, Inc. mikrofon AMM-3738-B-R. 20 Hz ~ 20.0 kHz, Rectangular, MEMS (Silicon), -38db ±1dB, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | SPU0410HR5H-PB |
| Mfr | Knowles |
| Description | MICROPHONE MEMS ANLG OMNI IOT |
| Series | SiSonic™ SPU |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 10.0 kHz |
| Sensitivity | -42dB ±3dB @ 94dB SPL |
| S/N Ratio | 59dB |
| Impedance | 300 Ohms |
| Voltage - Rated | - |
| Voltage Range | 1.5 V ~ 3.6 V |
| Current - Supply | 250 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.148" L x 0.116" W (3.76mm x 2.95mm) |
| Height (Max) | 0.047" (1.20mm) |
| Shape | Rectangular |
Bu ürüne ilk yorumu siz yapın!
