SC616NLR AUDIO PIEZO IND 6-16V PNL MNT - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

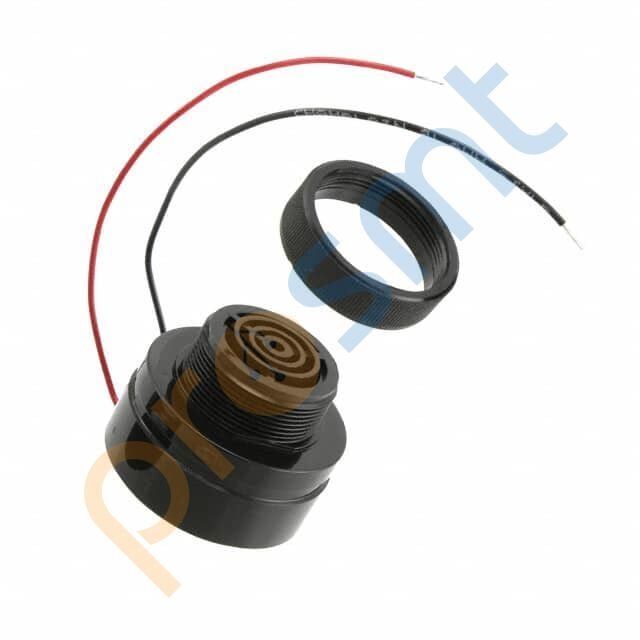

SC616NLR AUDIO PIEZO IND 6-16V PNL MNT
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | SC616NLR |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO PIEZO IND 6-16V PNL MNT |
| Series | SC |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 6 ~ 16V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 6V, 61cm |
| Current - Supply | 6 ~ 22mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 65°C |
| Approval Agency | cUL, UL |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Wire Leads |
| Size / Dimension | 1.687" Dia (42.85mm) |
| Height - Seated (Max) | 1.809" (45.96mm) |
