ROM-2235L-HD-R MICROPHONE COND ANALOG OMNI - MIKROFON | MIC
337,20 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

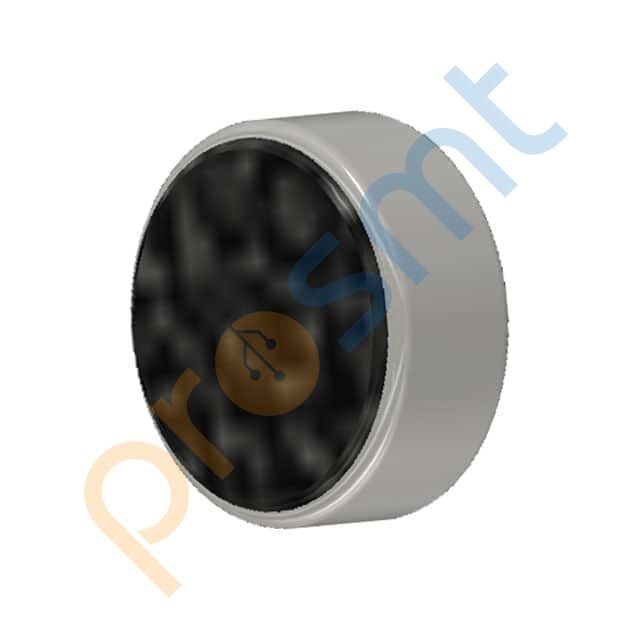

ROM-2235L-HD-R MICROPHONE COND ANALOG OMNI
Knowles mikrofon BJ-21590-000. 300 Hz ~ 5.0 kHz, Rectangular, Magnetic, -75.5dB ±3dB @ 74dB SPL, Omnidirectional, Analog çıkışlı.
| Datasheet | PDF Datasheet indir |
| Mfr Part # | ROM-2235L-HD-R |
| Mfr | PUI Audio, Inc. |
| Description | MICROPHONE COND ANALOG OMNI |
| Series | ROM |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 20 Hz ~ 20.0 kHz |
| Sensitivity | -35dB ±3dB |
| S/N Ratio | 68dB |
| Impedance | - |
| Voltage - Rated | 3 V |
| Voltage Range | - |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.228" Dia (5.80mm) |
| Height (Max) | 0.094" (2.40mm) |
| Shape | Circular |
