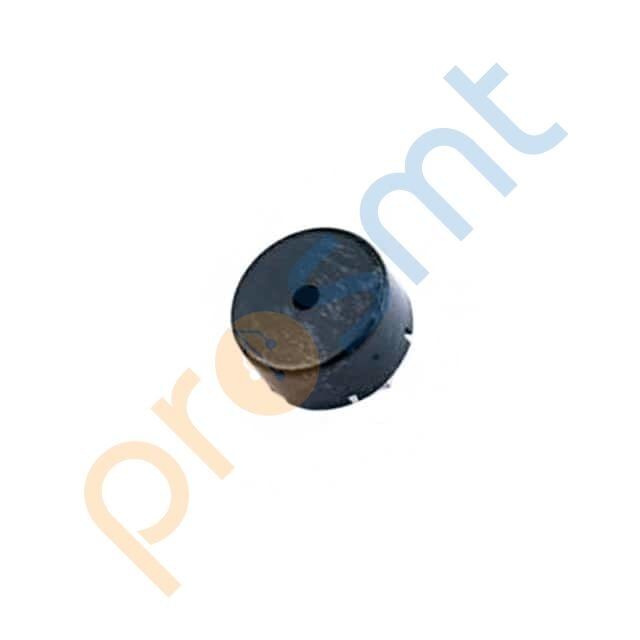

PT-1307 AUDIO PIEZO TRANSDUCER 1-20V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PT-1307 |
| Mfr | Soberton Inc. |
| Description | AUDIO PIEZO TRANSDUCER 1-20V TH |
| Series | PT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 1 ~ 20V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 70dB @ 3V, 10cm |
| Current - Supply | 1mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.496" Dia (12.60mm) |
| Height - Seated (Max) | 0.283" (7.20mm) |
