PS1240P02BT AUDIO PIEZO TRANSDUCER 30V TH - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

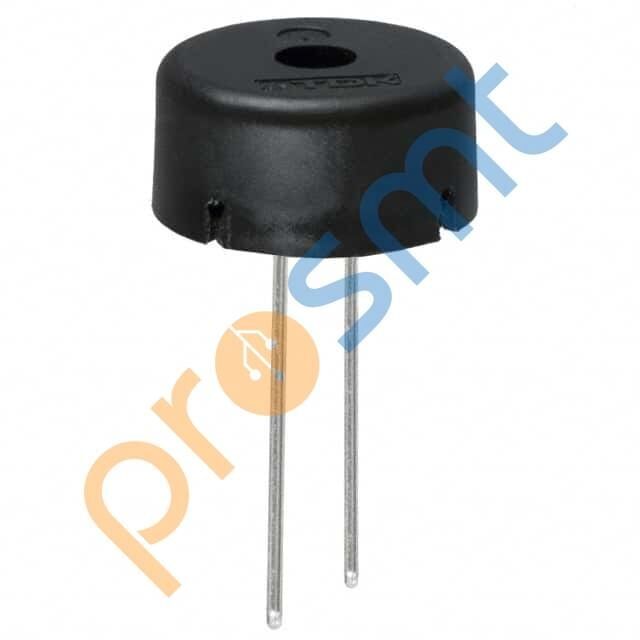

PS1240P02BT AUDIO PIEZO TRANSDUCER 30V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PS1240P02BT |
| Mfr | TDK Corporation |
| Description | AUDIO PIEZO TRANSDUCER 30V TH |
| Series | PS |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 30V (Max) |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 60dB @ 3V, 10cm |
| Current - Supply | - |
| Port Location | Top |
| Operating Temperature | -10°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.480" Dia (12.20mm) |
| Height - Seated (Max) | 0.307" (7.80mm) |
