PNR-23539-000 MIC BOOM ANALOG NC -60DB 8MM D - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

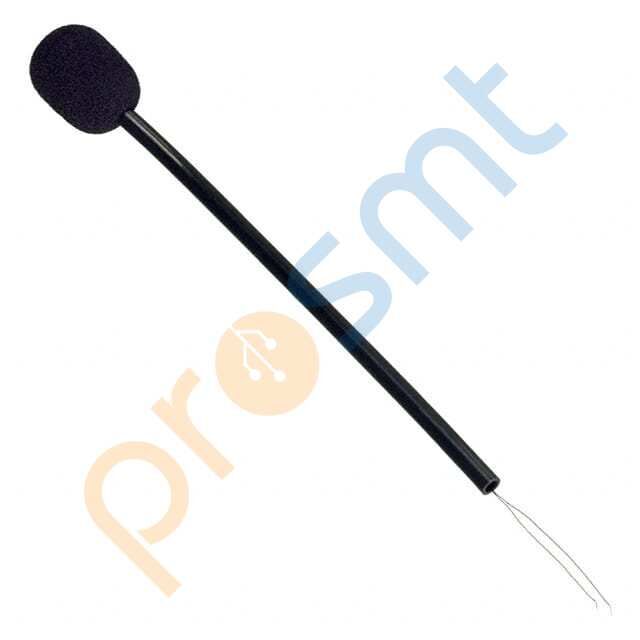

PNR-23539-000 MIC BOOM ANALOG NC -60DB 8MM D
Knowles mikrofon FB-BW-30335-000. 300 Hz ~ 4.0 kHz, Circular, Boom, -59dB ±4dB @ 74dB SPL, Noise Cancelling, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PNR-23539-000 |
| Mfr | Knowles |
| Description | MIC BOOM ANALOG NC -60DB 8MM D |
| Series | PNR |
| Type | Boom |
| Output Type | Analog |
| Direction | Noise Cancelling |
| Frequency Range | 300 Hz ~ 4.0 kHz |
| Sensitivity | -60dB ±4dB @ 74dB SPL |
| S/N Ratio | - |
| Impedance | 2.5 kOhms |
| Voltage - Rated | 1.3 V |
| Voltage Range | 1.3 V ~ 10.0 V |
| Current - Supply | 200 µA |
| Port Location | Bottom, Top |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height (Max) | 0.186" (4.72mm) |
| Shape | Circular |
