PMOF-9745P-39UQ MIC MAG ANLG OMNI -39DB 9.7MM D - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

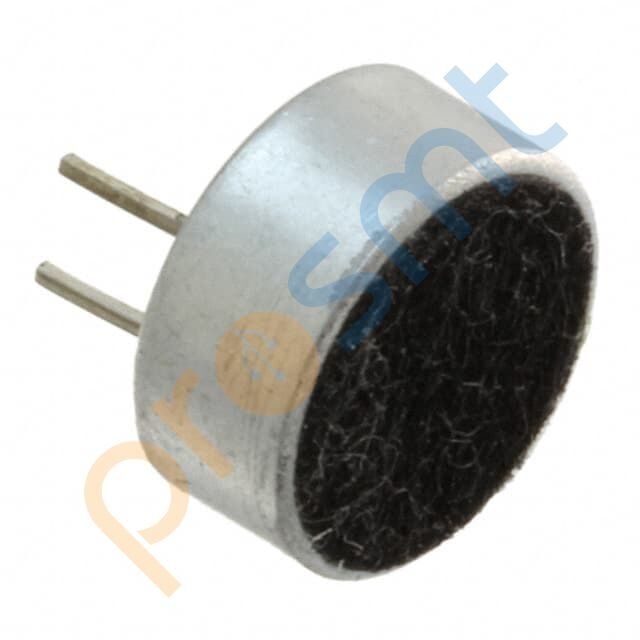

PMOF-9745P-39UQ MIC MAG ANLG OMNI -39DB 9.7MM D
CUI Devices mikrofon CMC-9745-44P. 20 Hz ~ 20.0 kHz, Circular, Electret Condenser, -44dB ±3dB @ 94dB SPL, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PMOF-9745P-39UQ |
| Mfr | Mallory Sonalert Products Inc. |
| Description | MIC MAG ANLG OMNI -39DB 9.7MM D |
| Series | PMOF |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 20 Hz ~ 16.0 kHz |
| Sensitivity | -39dB ±2dB @ 94dB SPL |
| S/N Ratio | 60dB |
| Impedance | 2.2 kOhms |
| Voltage - Rated | 4.5 V |
| Voltage Range | 1.1 V ~ 10.0 V |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | - |
| Termination | PC Pins |
| Size / Dimension | 0.382" Dia (9.70mm) |
| Height (Max) | 0.197" (5.00mm) |
| Shape | Circular |
