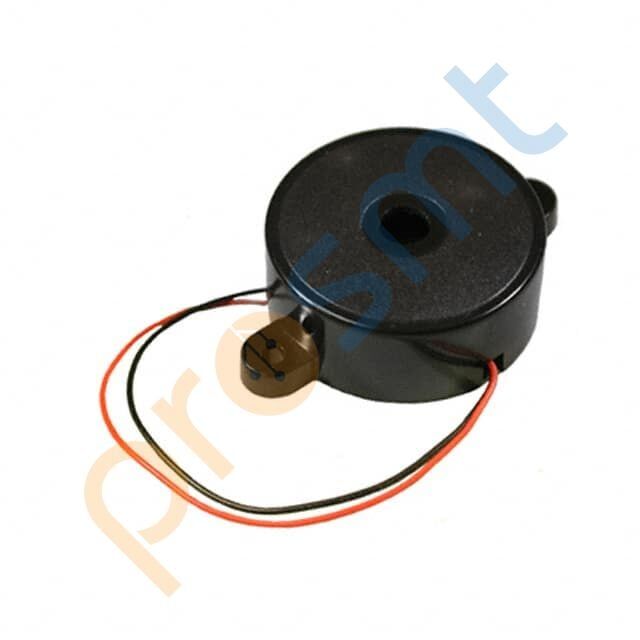

PK-21N30WQ AUDIO PIEZO IND 1.5-30V CHASSIS
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PK-21N30WQ |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO PIEZO IND 1.5-30V CHASSIS |
| Series | PK |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 1.5 ~ 30V |
| Frequency | 3kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 12V, 30cm |
| Current - Supply | 12mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 0.945" Dia (24.00mm) |
| Height - Seated (Max) | 0.382" (9.70mm) |
