PFD-20A35EWQ AUDIO PIEZO INDICATOR 3-24V CHAS - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

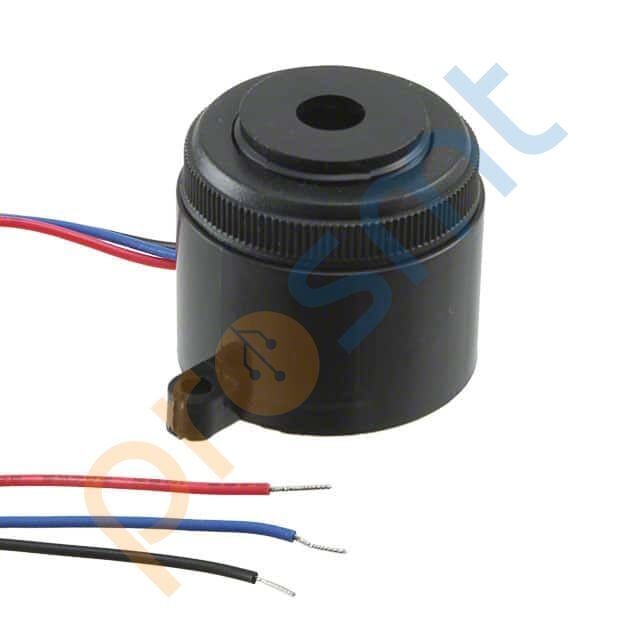

PFD-20A35EWQ AUDIO PIEZO INDICATOR 3-24V CHAS
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PFD-20A35EWQ |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO PIEZO INDICATOR 3-24V CHAS |
| Series | PFD |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 24V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Pin Selectable |
| Duration | - |
| Sound Pressure Level (SPL) | 95dB @ 12V, 30cm |
| Current - Supply | 10mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.102" Dia (28.00mm) |
| Height - Seated (Max) | 1.000" (25.40mm) |
