PF-21A31PQ AUDIO PIEZO INDICATOR 3-24V TH - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

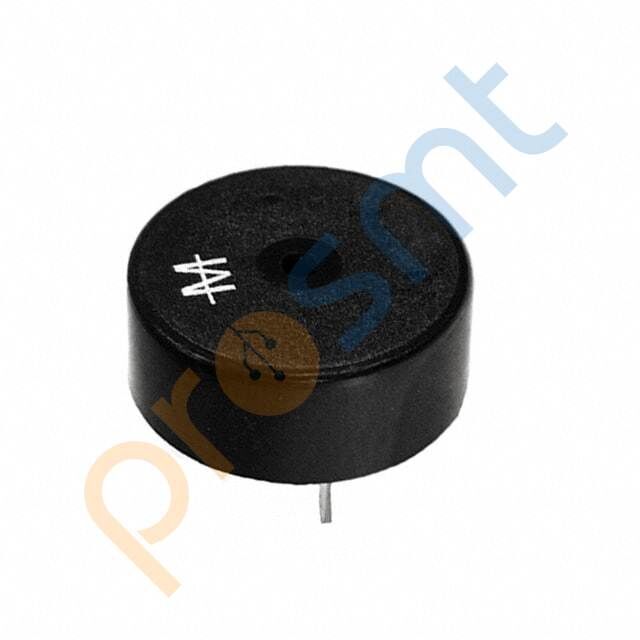

PF-21A31PQ AUDIO PIEZO INDICATOR 3-24V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PF-21A31PQ |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO PIEZO INDICATOR 3-24V TH |
| Series | PF |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 24V |
| Frequency | 3kHz |
| Technology | Piezo |
| Operating Mode | Pulse, Fast |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 12V, 30cm |
| Current - Supply | 18mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.945" Dia (24.00mm) |
| Height - Seated (Max) | 0.559" (14.20mm) |
