PB-1621PQ AUDIO MAGNETIC XDCR 4-7V TH - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

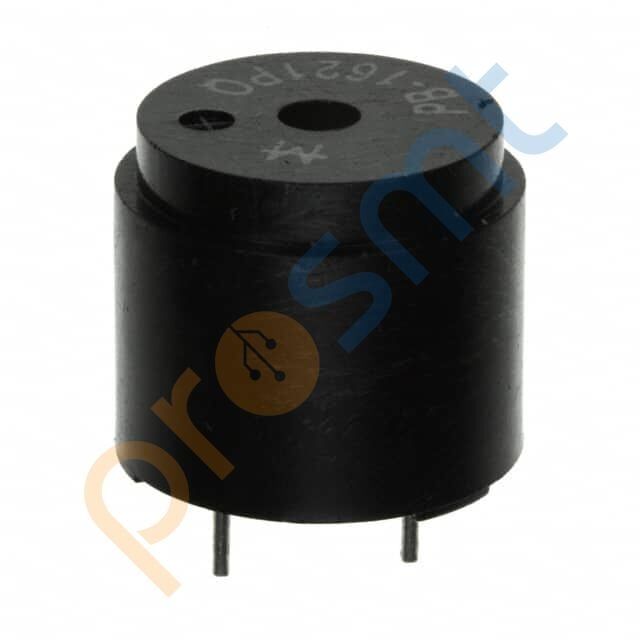

PB-1621PQ AUDIO MAGNETIC XDCR 4-7V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | PB-1621PQ |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO MAGNETIC XDCR 4-7V TH |
| Series | PB |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 4 ~ 7V |
| Frequency | 2.048kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 5V, 10cm |
| Current - Supply | 60mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.559" (14.20mm) |
