MSR516NJR AUDIO PIEZO INDICATOR 5-16V TH - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

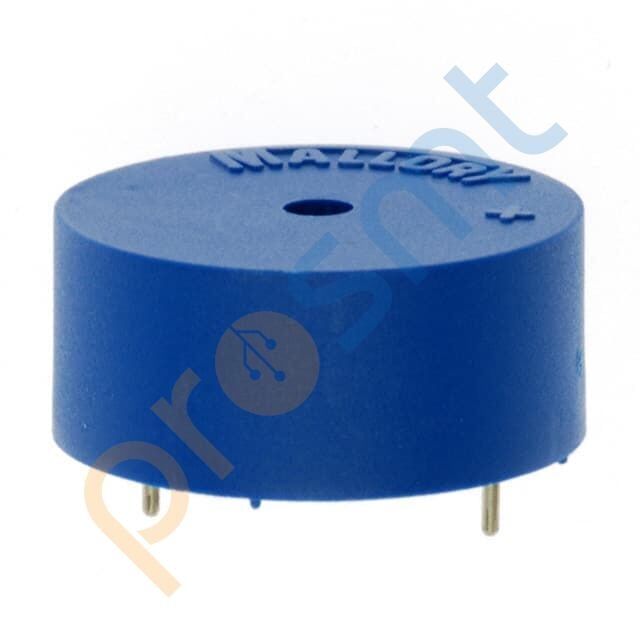

MSR516NJR AUDIO PIEZO INDICATOR 5-16V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | MSR516NJR |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO PIEZO INDICATOR 5-16V TH |
| Series | MSR |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 5 ~ 16V |
| Frequency | 3.9kHz |
| Technology | Piezo |
| Operating Mode | Pulse, Slow |
| Duration | 0.5 ~ 2.5 PPS |
| Sound Pressure Level (SPL) | 86dB @ 5V, 30cm |
| Current - Supply | 3 ~ 12mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.906" Dia (23.00mm) |
| Height - Seated (Max) | 0.421" (10.70mm) |
