MSO206NR AUDIO PIEZO INDICATOR 2-6V TH - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

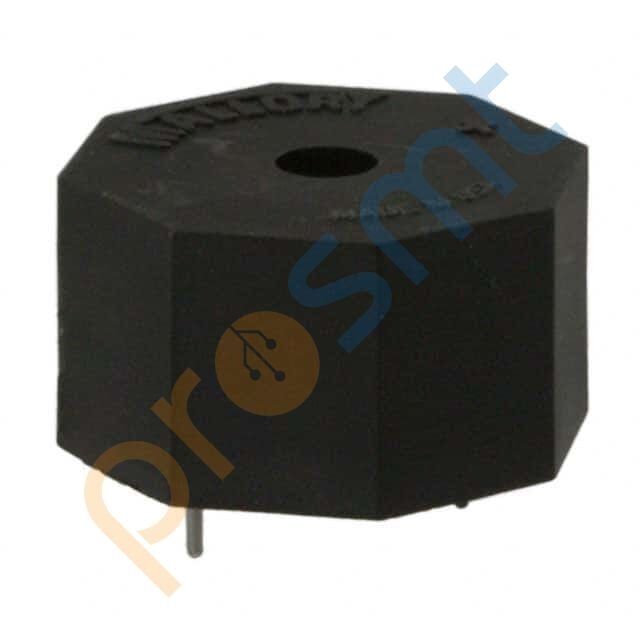

MSO206NR AUDIO PIEZO INDICATOR 2-6V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | MSO206NR |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO PIEZO INDICATOR 2-6V TH |
| Series | MSO |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 2 ~ 6V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 2V, 30cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 65°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
| Height - Seated (Max) | 0.535" (13.60mm) |
