MO063001-4 MIC COND ANALOG OMNI -30DB 6MM D - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

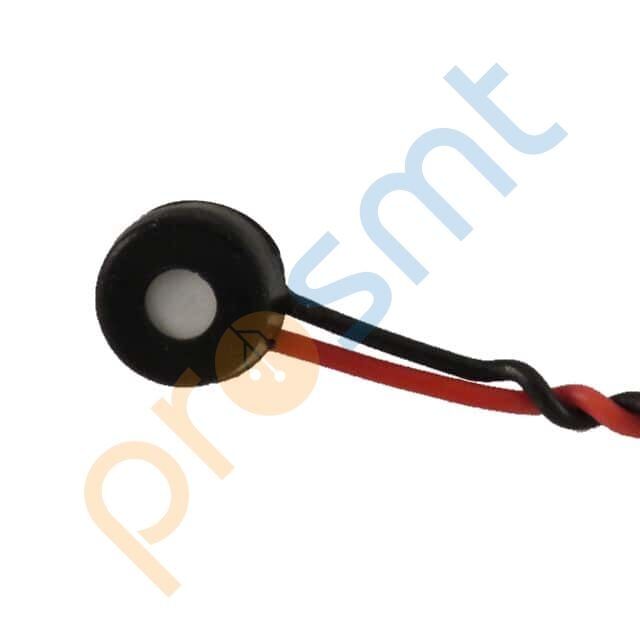

MO063001-4 MIC COND ANALOG OMNI -30DB 6MM D
Soberton Inc. mikrofon EM-9745UN. 200 Hz ~ 10.0 kHz, Circular, Electret Condenser, -42dB ±3dB @ 94dB SPL, Noise Cancelling, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | MO063001-4 |
| Mfr | DB Unlimited |
| Description | MIC COND ANALOG OMNI -30DB 6MM D |
| Series | - |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 8.0 kHz |
| Sensitivity | -30dB ±3dB |
| S/N Ratio | 58dB |
| Impedance | - |
| Voltage - Rated | 2 V |
| Voltage Range | 1 V ~ 10.0 V |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | IP67 - Dust Tight, Waterproof |
| Termination | Wire Leads |
| Size / Dimension | 0.236" Dia (6.00mm) |
| Height (Max) | 0.114" (2.90mm) |
| Shape | Circular |
