MM034202-17 MICROPHONE MEMS ANALOG OMNI - MIKROFON | MIC

40724; color: white; }.ea:hover { background: #E06000; letter-spacing: 1px; -webkit-box-shadow: 0px 5px 40px -10px rgba(0,0,0,0.57); -moz-box-shadow: 0px 5px 40px -10px rgba(0,0,0,0.57); box-shadow: 5px 40px -10px rgba(0,0,0,0.57); transition: all 0.4s ease 0s; } .ea{ display: block; height:40px; width:200px; background: #105B99; color: #ffffff; text-align: center; font-weight: bold; font-size: 100%; line-height: 40px; border-radius: 20px; text-decoration: none; }

Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

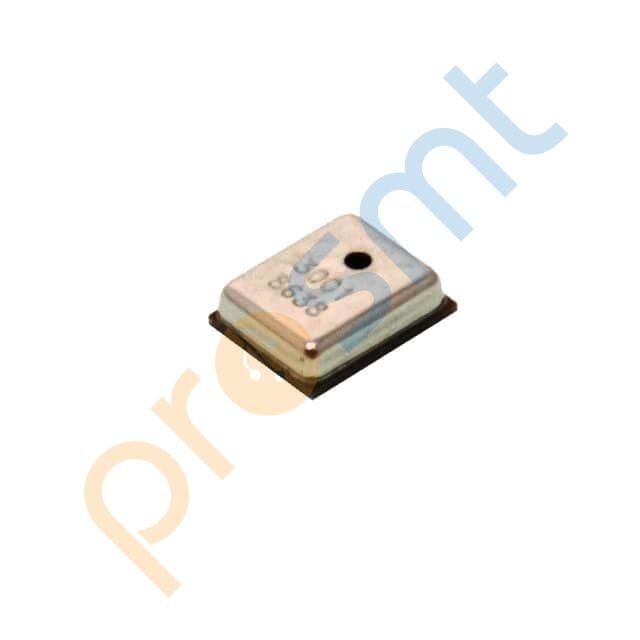

MM034202-17 MICROPHONE MEMS ANALOG OMNI

DB Unlimited mikrofon MM023802-2. 100 Hz ~ 10.0 kHz, Rectangular, MEMS (Silicon), -38dB ±3dB, Omnidirectional, Analog çıkışlı.

Özellik	Değer
Datasheet	PDF Datasheet indir
Mfr Part #	MM034202-17
Mfr	DB Unlimited
Description	MICROPHONE MEMS ANALOG OMNI
Series	-
Type	MEMS (Silicon)
Output Type	Analog
Direction	Omnidirectional
Frequency Range	100 Hz ~ 10.0 kHz
Sensitivity	-42dB ±3dB
S/N Ratio	57dB
Impedance	-
Voltage - Rated	2 V
Voltage Range	-
Current - Supply	180 µA
Port Location	Top
Ratings	-
Termination	Solder Pads
Size / Dimension	0.148" L x 0.116" W (3.76mm x 2.95mm)
Height (Max)	0.047" (1.20mm)
Shape	Rectangular
