MEO-96PD-01-603 ELECTRET CONDENSER MICROPHONE - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

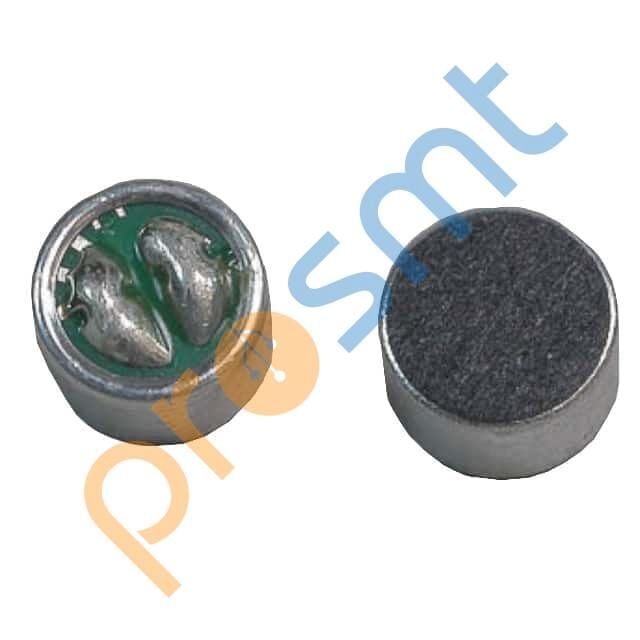

MEO-96PD-01-603 ELECTRET CONDENSER MICROPHONE
DB Unlimited mikrofon MO064404-1. 50 Hz ~ 16.0 kHz, Circular, Electret Condenser, -44dB, Omnidirectional, Analog çıkışlı.
Özellik | Değer |
---|---|
Datasheet | PDF Datasheet indir |
Mfr Part # | MEO-96PD-01-603 |
Mfr | International Components Corp. |
Description | ELECTRET CONDENSER MICROPHONE |
Series | - |
Type | Electret Condenser |
Output Type | Analog |
Direction | Omnidirectional |
Frequency Range | 20 Hz ~ 16.0 kHz |
Sensitivity | -60dB ±3dB |
S/N Ratio | 40dB |
Impedance | 2.2 kOhms |
Voltage - Rated | 1.5 V |
Voltage Range | - |
Current - Supply | 0.3 mA |
Port Location | Top |
Ratings | - |
Termination | Solder Pads |
Size / Dimension | 0.382" Dia (9.70mm) |
Height (Max) | 0.264" (6.70mm) |
Shape | Circular |
