IE123101-1 ELECTRO-MECHANICAL INDICATOR - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

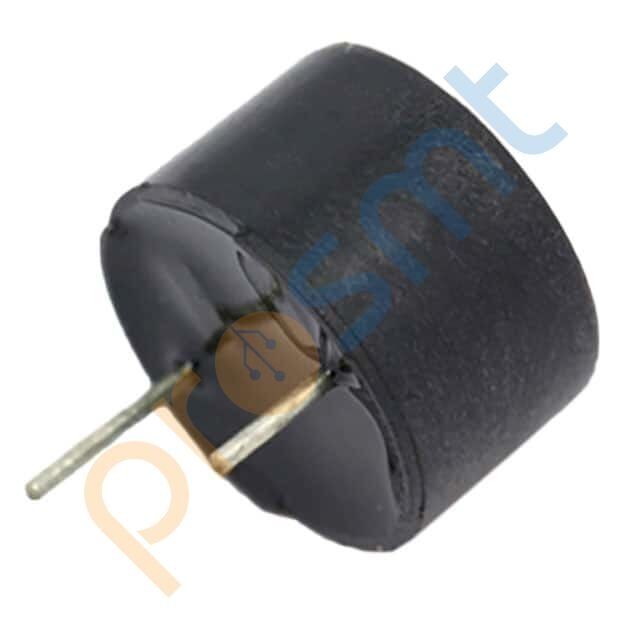

IE123101-1 ELECTRO-MECHANICAL INDICATOR
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | IE123101-1 |
| Mfr | DB Unlimited |
| Description | ELECTRO-MECHANICAL INDICATOR |
| Series | - |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 1.5 V |
| Voltage Range | - |
| Frequency | 3.1kHz |
| Technology | Electromechanical |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 1.5V, 10cm |
| Current - Supply | 25mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
