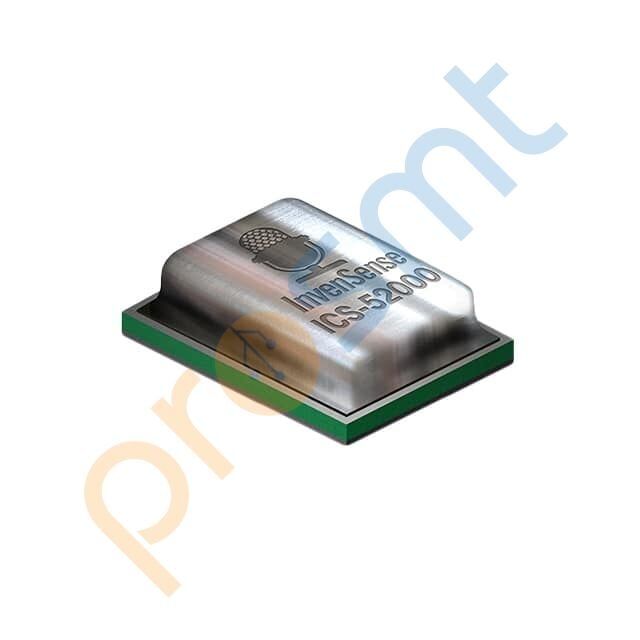

ICS-52000 MICROPHONE MEMS DIGITAL TDM OMNI
PUI Audio, Inc. mikrofon POM-3535P-3-R. -, Circular, Electret Condenser, -35dB ±4dB, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | ICS-52000 |
| Mfr | TDK InvenSense |
| Description | MICROPHONE MEMS DIGITAL TDM OMNI |
| Series | - |
| Type | MEMS (Silicon) |
| Output Type | Digital, TDM |
| Direction | Omnidirectional |
| Frequency Range | 50 Hz ~ 20.0 kHz |
| Sensitivity | -26 ±1dB @ 94dB SPL |
| S/N Ratio | 65dB |
| Impedance | - |
| Voltage - Rated | - |
| Voltage Range | 1.62 V ~ 3.63 V |
| Current - Supply | 1.5 mA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.157" L x 0.118" W (4.00mm x 3.00mm) |
| Height (Max) | 0.043" (1.10mm) |
| Shape | Rectangular |
