ICS-43432 MICROPHONE MEMS DIGITAL I2S OMNI - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

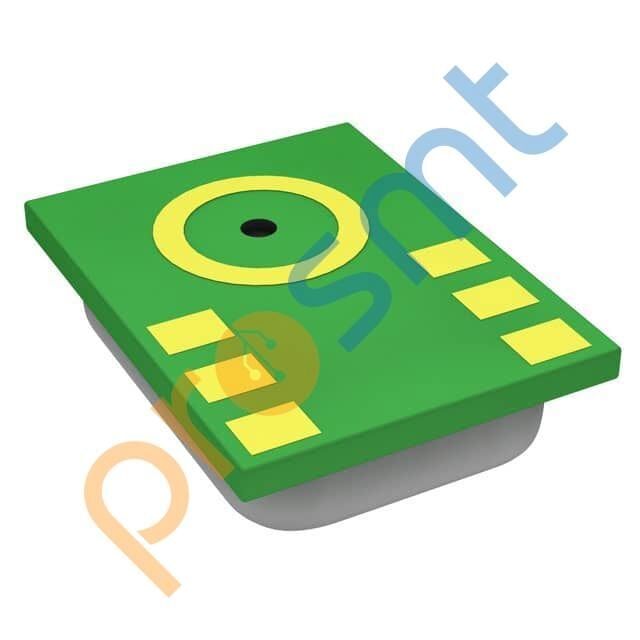

ICS-43432 MICROPHONE MEMS DIGITAL I2S OMNI
CUI Devices mikrofon CMC-2742PBJ-A. 100 Hz ~ 20.0 kHz, Circular, Electret Condenser, -42dB ±3dB @ 94dB SPL, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | ICS-43432 |
| Mfr | TDK InvenSense |
| Description | MICROPHONE MEMS DIGITAL I2S OMNI |
| Series | - |
| Type | MEMS (Silicon) |
| Output Type | Digital, I²S |
| Direction | Omnidirectional |
| Frequency Range | 50 Hz ~ 20.0 kHz |
| Sensitivity | -26dB ±1dB @ 94dB SPL |
| S/N Ratio | 65dB |
| Impedance | - |
| Voltage - Rated | - |
| Voltage Range | 1.62 V ~ 3.63 V |
| Current - Supply | 1.5 mA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.157" L x 0.118" W (4.00mm x 3.00mm) |
| Height (Max) | 0.043" (1.10mm) |
| Shape | Rectangular |
