EM-23046-C36 MICROPHONE COND ANALOG OMNI - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

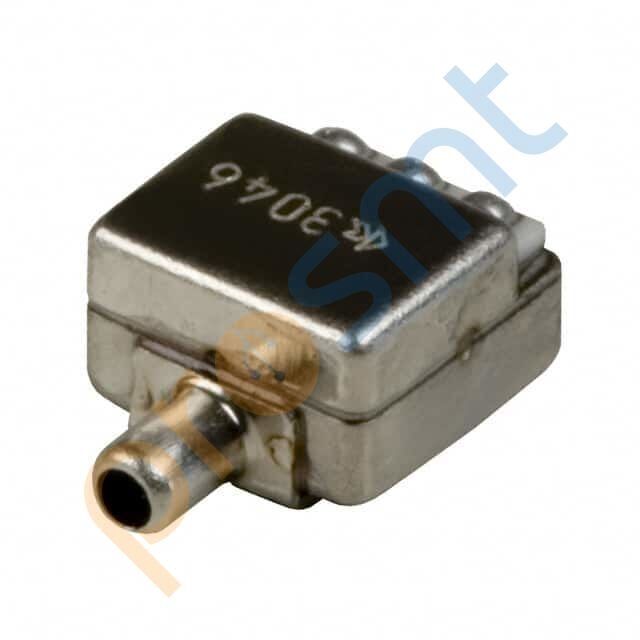

EM-23046-C36 MICROPHONE COND ANALOG OMNI
PUI Audio, Inc. mikrofon AOM-6746P-R. 30 Hz ~ 15.0 kHz, Circular, Electret Condenser, -46dB ±3dB, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | EM-23046-C36 |
| Mfr | Knowles |
| Description | MICROPHONE COND ANALOG OMNI |
| Series | EM |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 5.0 kHz |
| Sensitivity | -56dB ±3dB @ 74dB SPL |
| S/N Ratio | - |
| Impedance | 4.4 kOhms |
| Voltage - Rated | 1.3 V |
| Voltage Range | 0.9 V ~ 10.0 V |
| Current - Supply | 50 µA |
| Port Location | Side |
| Ratings | - |
| Termination | Screw Terminals |
| Size / Dimension | 0.141" L x 0.141" W (3.57mm x 3.57mm) |
| Height (Max) | 0.090" (2.28mm) |
| Shape | Square |
