EA-21842-C36 MICROPHONE COND ANALOG OMNI - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

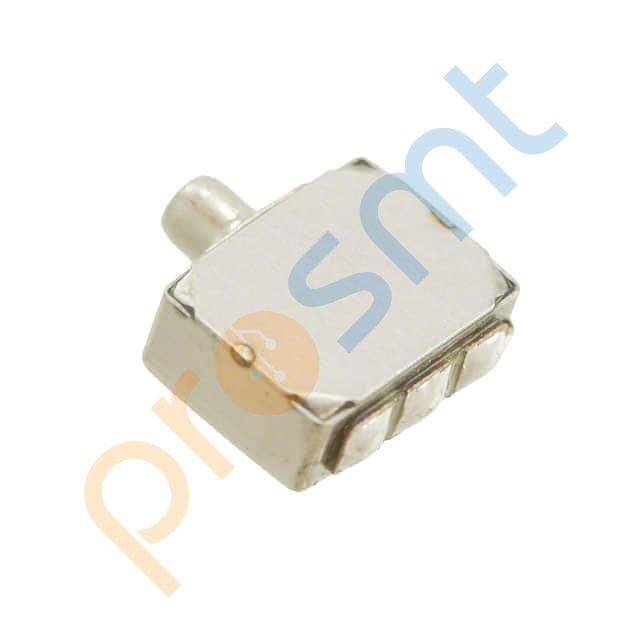

EA-21842-C36 MICROPHONE COND ANALOG OMNI
TDK InvenSense mikrofon MMICT4076-00-908. 80 Hz ~ 20.0 kHz, Rectangular, MEMS (Silicon), -38db ±1dB @ 127dB, -, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | EA-21842-C36 |
| Mfr | Knowles |
| Description | MICROPHONE COND ANALOG OMNI |
| Series | EA |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 4.8 kHz |
| Sensitivity | -59dB ±3dB @ 74dB SPL |
| S/N Ratio | - |
| Impedance | 3.5 kOhms |
| Voltage - Rated | 1.3 V |
| Voltage Range | - |
| Current - Supply | 50 µA |
| Port Location | Side |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.219" L x 0.157" W (5.56mm x 3.99mm) |
| Height (Max) | 0.089" (2.26mm) |
| Shape | Rectangular |
