CS-3612 AUDIO MAGNETIC IND 8-16V CHASSIS - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

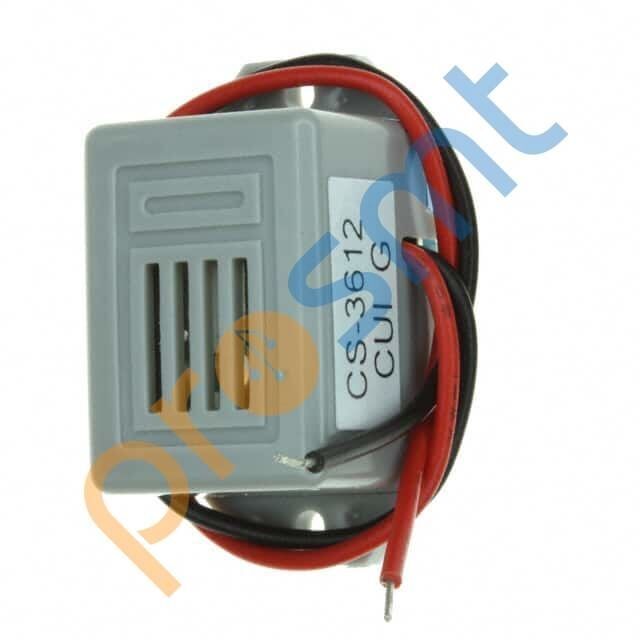

CS-3612 AUDIO MAGNETIC IND 8-16V CHASSIS
Özellik | Değer |
---|---|
Datasheet | PDF Datasheet indir |
Mfr Part # | CS-3612 |
Mfr | CUI Devices |
Description | AUDIO MAGNETIC IND 8-16V CHASSIS |
Series | CS |
Driver Circuitry | Indicator, Internally Driven |
Input Type | DC |
Voltage - Rated | 12 V |
Voltage Range | 8 ~ 16V |
Frequency | - |
Technology | Magnetic |
Operating Mode | Single Tone |
Duration | - |
Sound Pressure Level (SPL) | 79dB @ 12V, 30cm |
Current - Supply | 30mA |
Port Location | Top |
Operating Temperature | -20°C ~ 60°C |
Approval Agency | - |
Ratings | - |
Ingress Protection | - |
Mounting Type | Panel Mount, Flange |
Termination | Wire Leads |
Size / Dimension | 1.260" L x 0.669" W (32.00mm x 17.00mm) |
Height - Seated (Max) | 0.630" (16.00mm) |
