CPT-5828-108L170 BUZZER, 58.5 MM X 52.8 X 28.3 MM - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

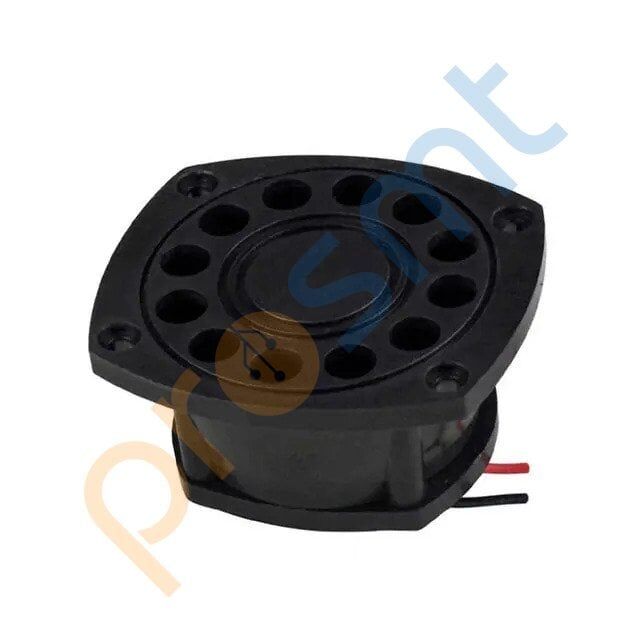

CPT-5828-108L170 BUZZER, 58.5 MM X 52.8 X 28.3 MM
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPT-5828-108L170 |
| Mfr | CUI Devices |
| Description | BUZZER, 58.5 MM X 52.8 X 28.3 MM |
| Series | CPT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 85 V |
| Voltage Range | 3 ~ 85V |
| Frequency | 2.7kHz |
| Technology | Piezo |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 103dB @ 85V, 30cm |
| Current - Supply | 90mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 2.303" L x 2.079" W (58.50mm x 52.80mm) |
| Height - Seated (Max) | 1.134" (28.80mm) |
