CPT-4011-85PM BUZZER, 40 MM X 46.5 MM X 11.5 M - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

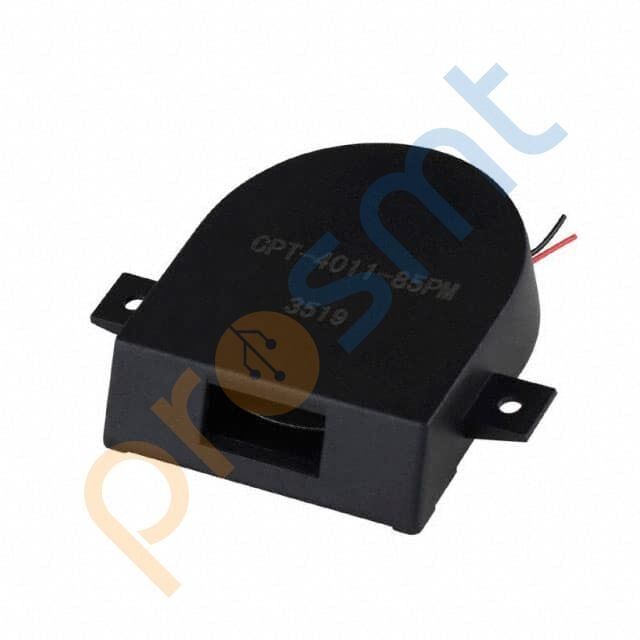

CPT-4011-85PM BUZZER, 40 MM X 46.5 MM X 11.5 M
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPT-4011-85PM |
| Mfr | CUI Devices |
| Description | BUZZER, 40 MM X 46.5 MM X 11.5 M |
| Series | CPT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 60V (Max) |
| Frequency | 3.25kHz |
| Technology | Piezo |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 50V, 300cm |
| Current - Supply | 30mA |
| Port Location | Side |
| Operating Temperature | -30°C ~ 80°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.890" L x 1.831" W (48.00mm x 46.50mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
