CPT-2521C-500 AUDIO PIEZO TRANSDUCER 50V CHAS - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

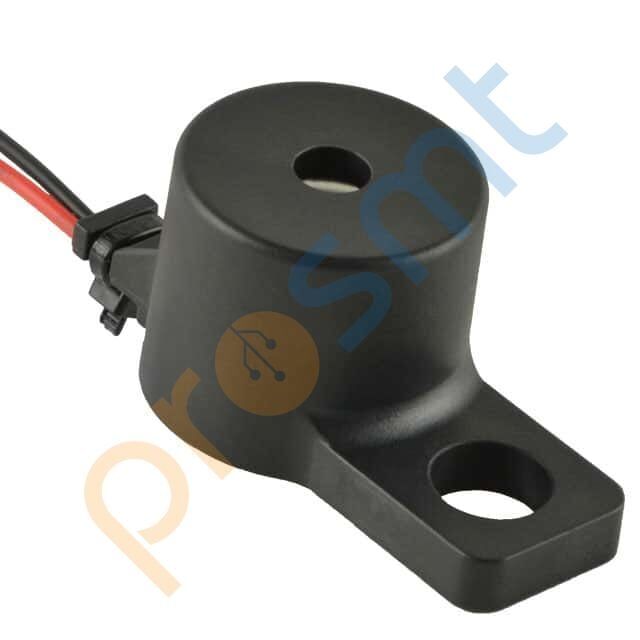

CPT-2521C-500 AUDIO PIEZO TRANSDUCER 50V CHAS
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPT-2521C-500 |
| Mfr | CUI Devices |
| Description | AUDIO PIEZO TRANSDUCER 50V CHAS |
| Series | CPT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 20 V |
| Voltage Range | 50V (Max) |
| Frequency | 3.7kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 95dB @ 20V, 30cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.008" Dia (25.60mm) |
| Height - Seated (Max) | 0.870" (22.10mm) |
