CPS-5248-105PM SIREN, 52.5 MM ROUND, 48.5 MM DE - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

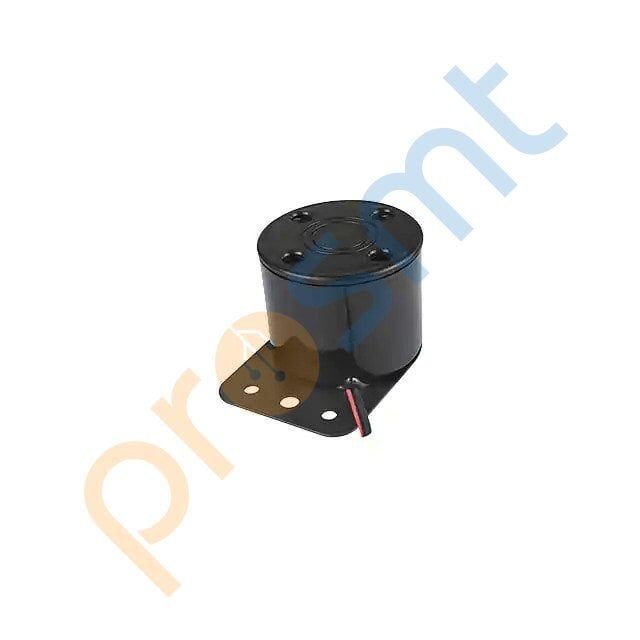

CPS-5248-105PM SIREN, 52.5 MM ROUND, 48.5 MM DE
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPS-5248-105PM |
| Mfr | CUI Devices |
| Description | SIREN, 52.5 MM ROUND, 48.5 MM DE |
| Series | CPS |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 6 ~ 15V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Warble |
| Duration | - |
| Sound Pressure Level (SPL) | 98dB @ 12V, 100cm |
| Current - Supply | 280mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 2.087" Dia (53.00mm) |
| Height - Seated (Max) | 1.665" (42.30mm) |
