CPI-5029-105T BUZZER PIEZO 12V 50MM T/H - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

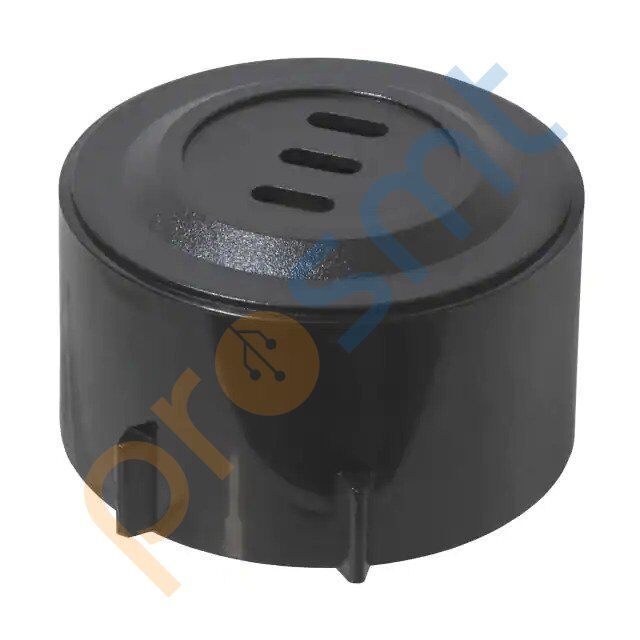

CPI-5029-105T BUZZER PIEZO 12V 50MM T/H
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPI-5029-105T |
| Mfr | CUI Devices |
| Description | BUZZER PIEZO 12V 50MM T/H |
| Series | CPI |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 5 ~ 13V |
| Frequency | 2.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 105dB @ 12V, 30cm |
| Current - Supply | 75mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 1.161" (29.50mm) |
