CPI-3119-90PM BUZZER PIEZO 12V 33MM PNL MT - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

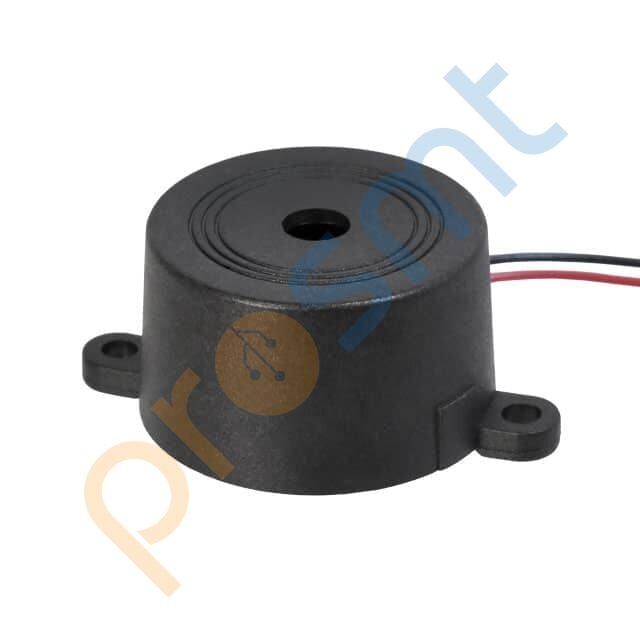

CPI-3119-90PM BUZZER PIEZO 12V 33MM PNL MT
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPI-3119-90PM |
| Mfr | CUI Devices |
| Description | BUZZER PIEZO 12V 33MM PNL MT |
| Series | CPI |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 20V |
| Frequency | 3.1kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 12V, 30cm |
| Current - Supply | 15mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.299" Dia (33.00mm) |
| Height - Seated (Max) | 0.783" (19.90mm) |
