CPI-3020-90T BUZZER PIEZO 12V 30MM T/H - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

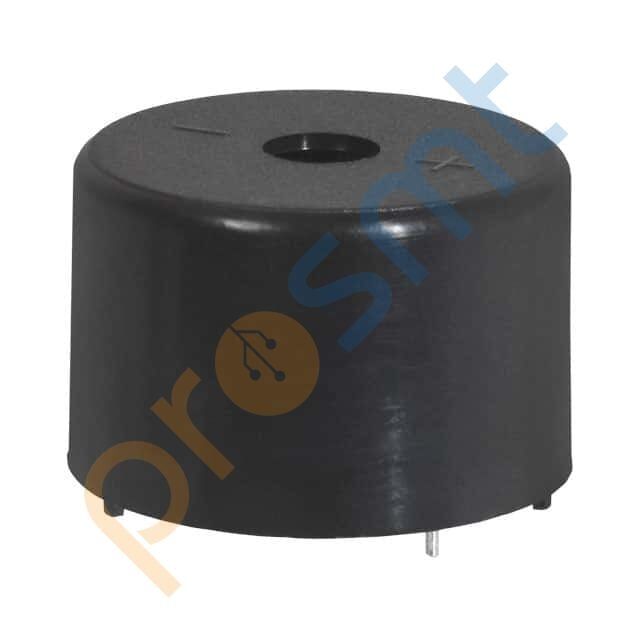

CPI-3020-90T BUZZER PIEZO 12V 30MM T/H
Özellik | Değer |
---|---|
Datasheet | PDF Datasheet indir |
Mfr Part # | CPI-3020-90T |
Mfr | CUI Devices |
Description | BUZZER PIEZO 12V 30MM T/H |
Series | CPI |
Driver Circuitry | Indicator, Internally Driven |
Input Type | DC |
Voltage - Rated | 12 V |
Voltage Range | 3 ~ 24V |
Frequency | 3.5kHz |
Technology | Piezo |
Operating Mode | Single Tone |
Duration | - |
Sound Pressure Level (SPL) | 93dB @ 12V, 30cm |
Current - Supply | 12mA |
Port Location | Top |
Operating Temperature | -30°C ~ 70°C |
Approval Agency | - |
Ratings | - |
Ingress Protection | - |
Mounting Type | Through Hole |
Termination | PC Pins |
Size / Dimension | 1.181" Dia (30.00mm) |
Height - Seated (Max) | 0.827" (21.00mm) |
