CPE-503 AUDIO PIEZO TRANSDUCER 3-28V TH - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

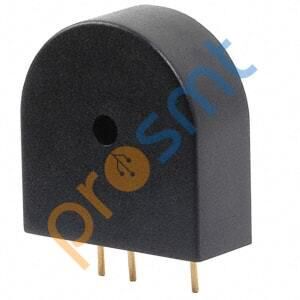

CPE-503 AUDIO PIEZO TRANSDUCER 3-28V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPE-503 |
| Mfr | CUI Devices |
| Description | AUDIO PIEZO TRANSDUCER 3-28V TH |
| Series | CPE |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 28V |
| Frequency | 3.2kHz |
| Technology | Piezo (with Feedback) |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 72dB @ 12V, 30cm |
| Current - Supply | 7mA |
| Port Location | Side |
| Operating Temperature | -30°C ~ 115°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.945" L x 0.394" W (24.00mm x 10.00mm) |
| Height - Seated (Max) | 1.004" (25.50mm) |
