CPE-420 AUDIO PIEZO INDICATOR 3-16V CHAS - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

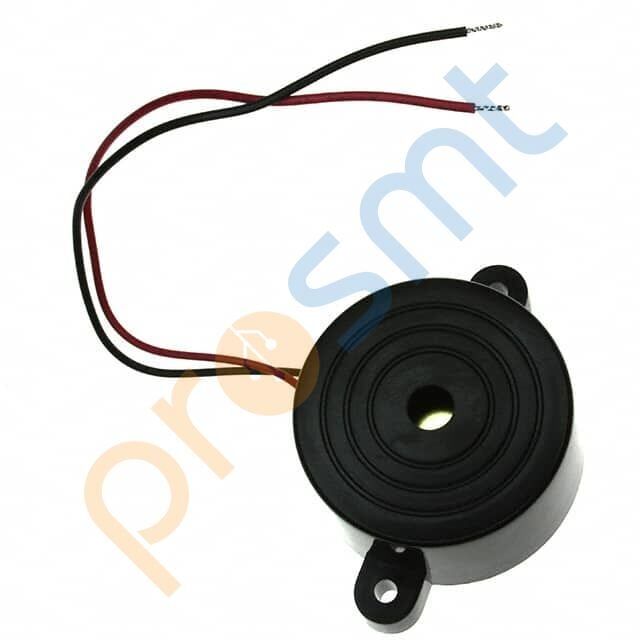

CPE-420 AUDIO PIEZO INDICATOR 3-16V CHAS
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPE-420 |
| Mfr | CUI Devices |
| Description | AUDIO PIEZO INDICATOR 3-16V CHAS |
| Series | CPE |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 16V |
| Frequency | 2.8kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 102dB @ 12V, 30cm |
| Current - Supply | 50mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.646" Dia (41.80mm) |
| Height - Seated (Max) | 0.886" (22.50mm) |
Bu ürüne ilk yorumu siz yapın!
