CPE-223 AUDIO PIEZO INDICATOR 3-20V TH - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

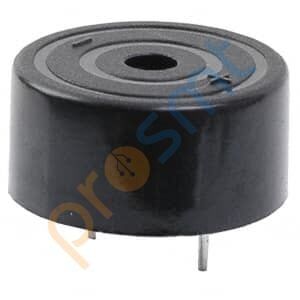

CPE-223 AUDIO PIEZO INDICATOR 3-20V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPE-223 |
| Mfr | CUI Devices |
| Description | AUDIO PIEZO INDICATOR 3-20V TH |
| Series | CPE |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 20V |
| Frequency | 3.3kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 81dB @ 12V, 30cm |
| Current - Supply | 13mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.937" Dia (23.80mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
