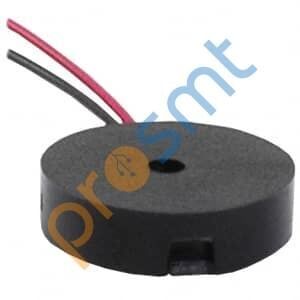

CPE-165 AUDIO PIEZO TRANSDUCER 30V - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri
CPE-165 AUDIO PIEZO TRANSDUCER 30V
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CPE-165 |
| Mfr | CUI Devices |
| Description | AUDIO PIEZO TRANSDUCER 30V |
| Series | CPE |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 10 V |
| Voltage Range | 30V (Max) |
| Frequency | - |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 10V, 10cm |
| Current - Supply | 11mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Custom |
| Termination | Wire Leads |
| Size / Dimension | 0.551" Dia (14.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
