CMT-0904-83T BUZZER, 9 MM, 4 MM DEEP, M, 9 V, - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

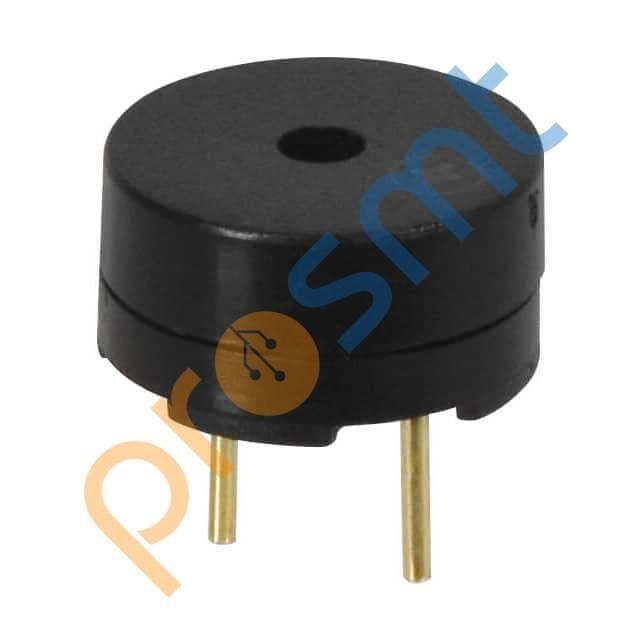

CMT-0904-83T BUZZER, 9 MM, 4 MM DEEP, M, 9 V,
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CMT-0904-83T |
| Mfr | CUI Devices |
| Description | BUZZER, 9 MM, 4 MM DEEP, M, 9 V, |
| Series | CMT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 2 ~ 5V |
| Frequency | 2.73kHz |
| Technology | Magnetic |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 83dB @ 3V, 10cm |
| Current - Supply | 90mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
