CMI-9605-1280T BUZZER, 9.6 MM X 5 MM DEEP, M, 1 - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

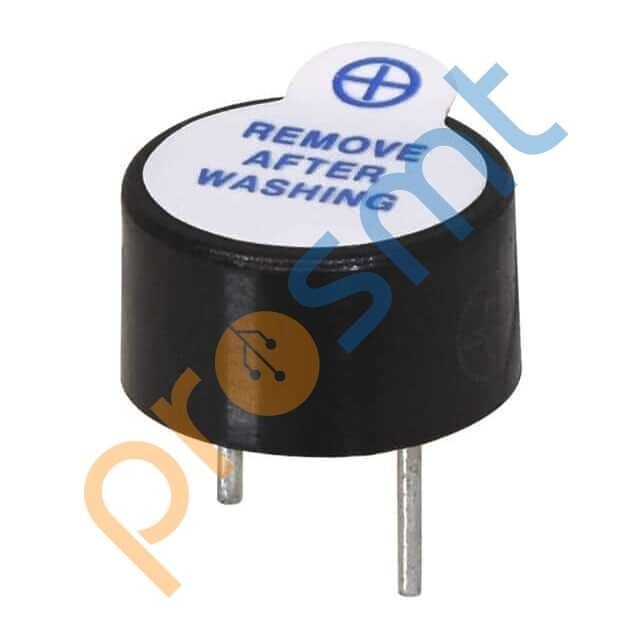

CMI-9605-1280T BUZZER, 9.6 MM X 5 MM DEEP, M, 1
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CMI-9605-1280T |
| Mfr | CUI Devices |
| Description | BUZZER, 9.6 MM X 5 MM DEEP, M, 1 |
| Series | CMI |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 9 ~ 15V |
| Frequency | 2.7kHz |
| Technology | Magnetic |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 12V, 10cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.378" Dia (9.60mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
