CMI-4537-SN69 MIC COND ANLG UNI -37DB 9.7MM D - MIKROFON | MIC
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

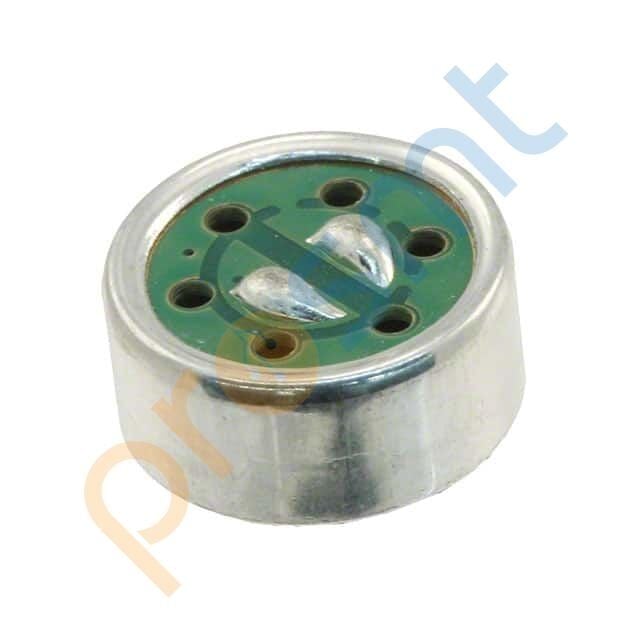

CMI-4537-SN69 MIC COND ANLG UNI -37DB 9.7MM D
Knowles mikrofon EK-23024-C36. 100 Hz ~ 5.5 kHz, Rectangular, Electret Condenser, -53dB ±2dB @ 74dB SPL, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CMI-4537-SN69 |
| Mfr | CUI Devices |
| Description | MIC COND ANLG UNI -37DB 9.7MM D |
| Series | - |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Unidirectional |
| Frequency Range | 100 Hz ~ 12.0 kHz |
| Sensitivity | -37dB ±3dB @ 94dB SPL |
| S/N Ratio | 69dB |
| Impedance | 2.34 kOhms |
| Voltage - Rated | - |
| Voltage Range | 1.5 V ~ 9.0 V |
| Current - Supply | 400 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.382" Dia (9.70mm) |
| Height (Max) | 0.177" (4.50mm) |
| Shape | Circular |
