CMC-6010-42L100 MIC COND ANALOG OMNI -42DB 6MM D - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

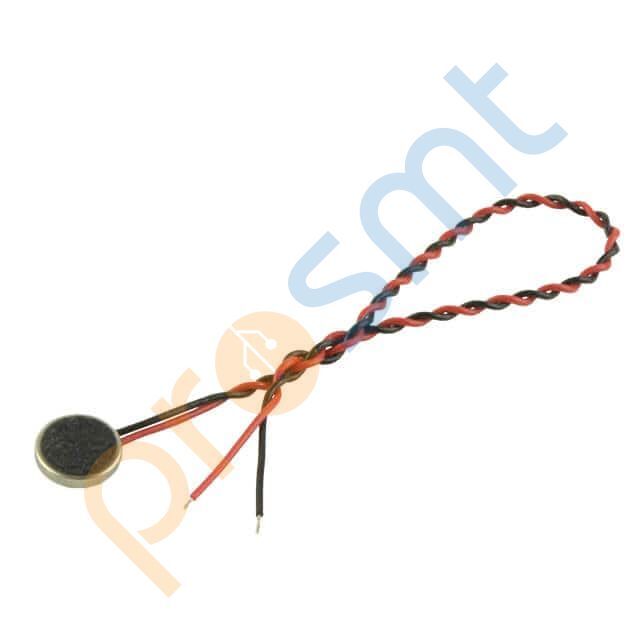

CMC-6010-42L100 MIC COND ANALOG OMNI -42DB 6MM D
Knowles mikrofon WP-30113-P03. 100 Hz ~ 6.0 kHz, Rectangular, Electret Condenser, -, Omnidirectional, Analog çıkışlı.
Özellik | Değer |
---|---|
Datasheet | PDF Datasheet indir |
Mfr Part # | CMC-6010-42L100 |
Mfr | CUI Devices |
Description | MIC COND ANALOG OMNI -42DB 6MM D |
Series | CMC |
Type | Electret Condenser |
Output Type | Analog |
Direction | Omnidirectional |
Frequency Range | 100 Hz ~ 20.0 kHz |
Sensitivity | -42dB ±3dB @ 94dB SPL |
S/N Ratio | 58dB |
Impedance | 2.2 kOhms |
Voltage - Rated | 2 V |
Voltage Range | 2 V ~ 10.0 V |
Current - Supply | 500 µA |
Port Location | Top |
Ratings | - |
Termination | Wire Leads |
Size / Dimension | 0.236" Dia (6.00mm) |
Height (Max) | 0.047" (1.20mm) |
Shape | Circular |
