CMC-5042PF-AC MIC COND ANALOG OMNI -42DB 6MM D - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

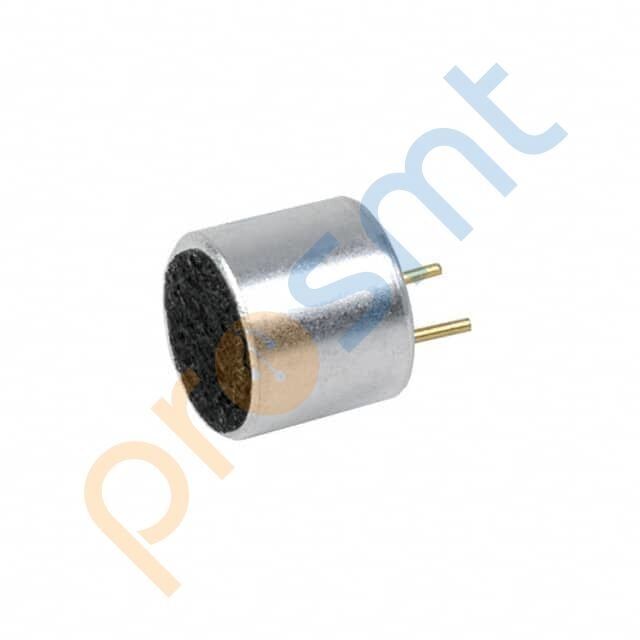

CMC-5042PF-AC MIC COND ANALOG OMNI -42DB 6MM D
DB Unlimited mikrofon MW044202-1. 50 Hz ~ 16.0 kHz, Circular, Electret Condenser, -42dB ±3dB, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CMC-5042PF-AC |
| Mfr | CUI Devices |
| Description | MIC COND ANALOG OMNI -42DB 6MM D |
| Series | - |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 20.0 kHz |
| Sensitivity | -42dB ±3dB @ 94dB SPL |
| S/N Ratio | 56dB |
| Impedance | 2.2 kOhms |
| Voltage - Rated | 2 V |
| Voltage Range | 2 V ~ 10.0 V |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | - |
| Termination | PC Pins |
| Size / Dimension | 0.236" Dia (6.00mm) |
| Height (Max) | 0.205" (5.20mm) |
| Shape | Circular |
