CMA-4544PF-W MICROPHONE COND ANALOG OMNI - MIKROFON | MIC
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri

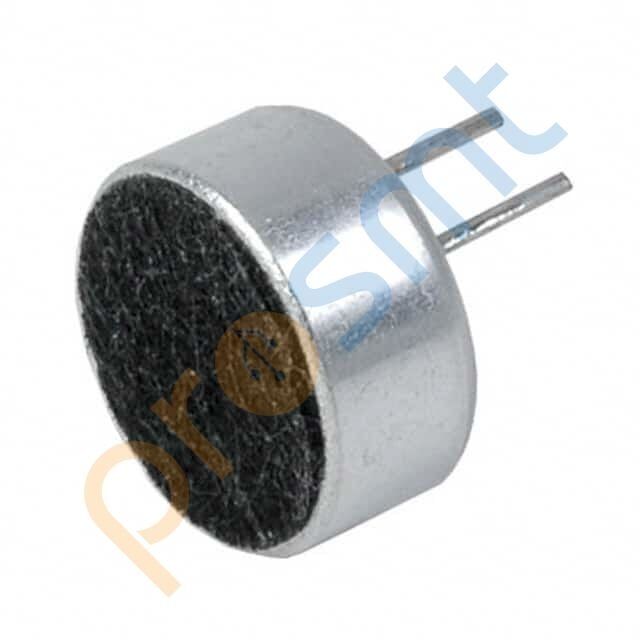

CMA-4544PF-W MICROPHONE COND ANALOG OMNI
CUI Devices mikrofon CMC-5044PF-A. 100 Hz ~ 20.0 kHz, Circular, Electret Condenser, -44dB ±3dB @ 94dB SPL, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CMA-4544PF-W |
| Mfr | CUI Devices |
| Description | MICROPHONE COND ANALOG OMNI |
| Series | - |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 20 Hz ~ 20.0 kHz |
| Sensitivity | -44dB ±2dB |
| S/N Ratio | 60dB |
| Impedance | 2.2 kOhms |
| Voltage - Rated | - |
| Voltage Range | 3 V ~ 10.0 V |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | - |
| Termination | PC Pins |
| Size / Dimension | 0.382" Dia (9.70mm) |
| Height (Max) | 0.183" (4.65mm) |
| Shape | Circular |
