CEP-1162 AUDIO PIEZO TRANSDUCER 20V TH - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

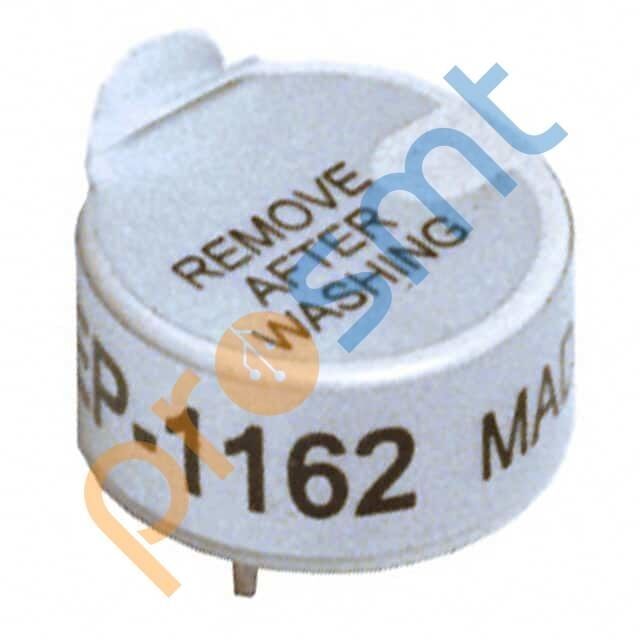

CEP-1162 AUDIO PIEZO TRANSDUCER 20V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CEP-1162 |
| Mfr | CUI Devices |
| Description | AUDIO PIEZO TRANSDUCER 20V TH |
| Series | CEP |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 10 V |
| Voltage Range | 20V (Max) |
| Frequency | - |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 10V, 10cm |
| Current - Supply | 7mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.551" Dia (14.00mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
