CC-0601 AUDIO MAGNETIC XDCR 1-1.7V TH - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

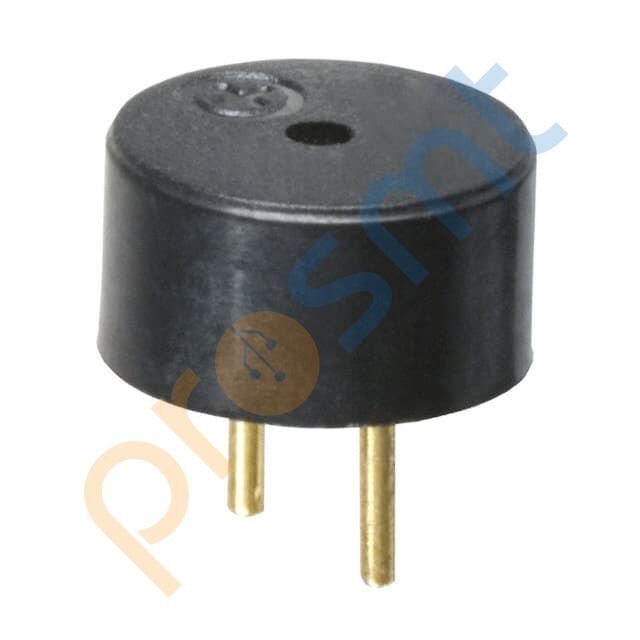

CC-0601 AUDIO MAGNETIC XDCR 1-1.7V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | CC-0601 |
| Mfr | CUI Devices |
| Description | AUDIO MAGNETIC XDCR 1-1.7V TH |
| Series | - |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 1.5 V |
| Voltage Range | 1 ~ 1.7V |
| Frequency | 3kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 70dB @ 1.5V, 10cm |
| Current - Supply | 80mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.260" Dia (6.60mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
