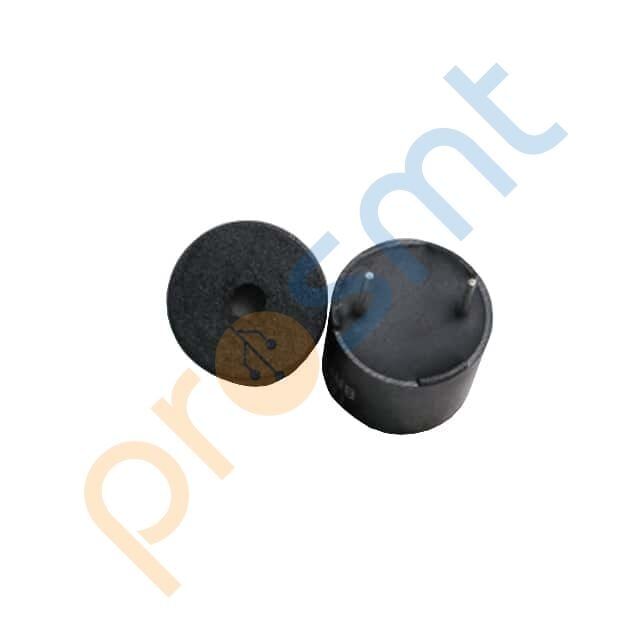

BRT1209P-06-C MAGNETIC TRANSDUCER, INTERNAL - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri
BRT1209P-06-C MAGNETIC TRANSDUCER, INTERNAL
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | BRT1209P-06-C |
| Mfr | International Components Corp. |
| Description | MAGNETIC TRANSDUCER, INTERNAL |
| Series | - |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | DC |
| Voltage - Rated | 5 V |
| Voltage Range | 4 ~ 7V |
| Frequency | 2.3kHz |
| Technology | Magnetic |
| Operating Mode | Continuous |
| Duration | - |
| Sound Pressure Level (SPL) | 100dB @ 5V, 10cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.299" (7.60mm) |
